PRODUCTS > FOUNDRY SYSTEM > RECOVER & RECYCLE SYSTEM
OUR SYSTEMS ARE TAILOR-MADE TO SATISFY YOUR SPECIFIC NEEDS AND GUARANTEE AN EFFICIENT AND RELIABLE SOLUTION
REQUEST A QUOTE NOW FOR THE PURCHASE OF YOUR RECOVERY SYSTEM AND FIND OUT HOW WE CAN HELP YOU IMPROVE YOUR PRODUCTION AND SAVE ON COSTS
CONTACT US TODAY FOR MORE INFORMATION!

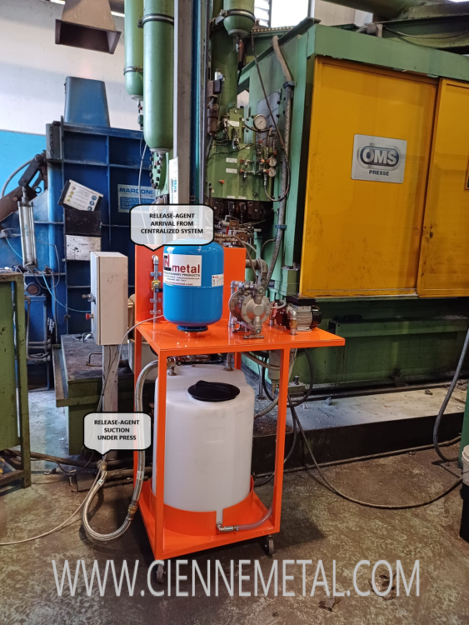

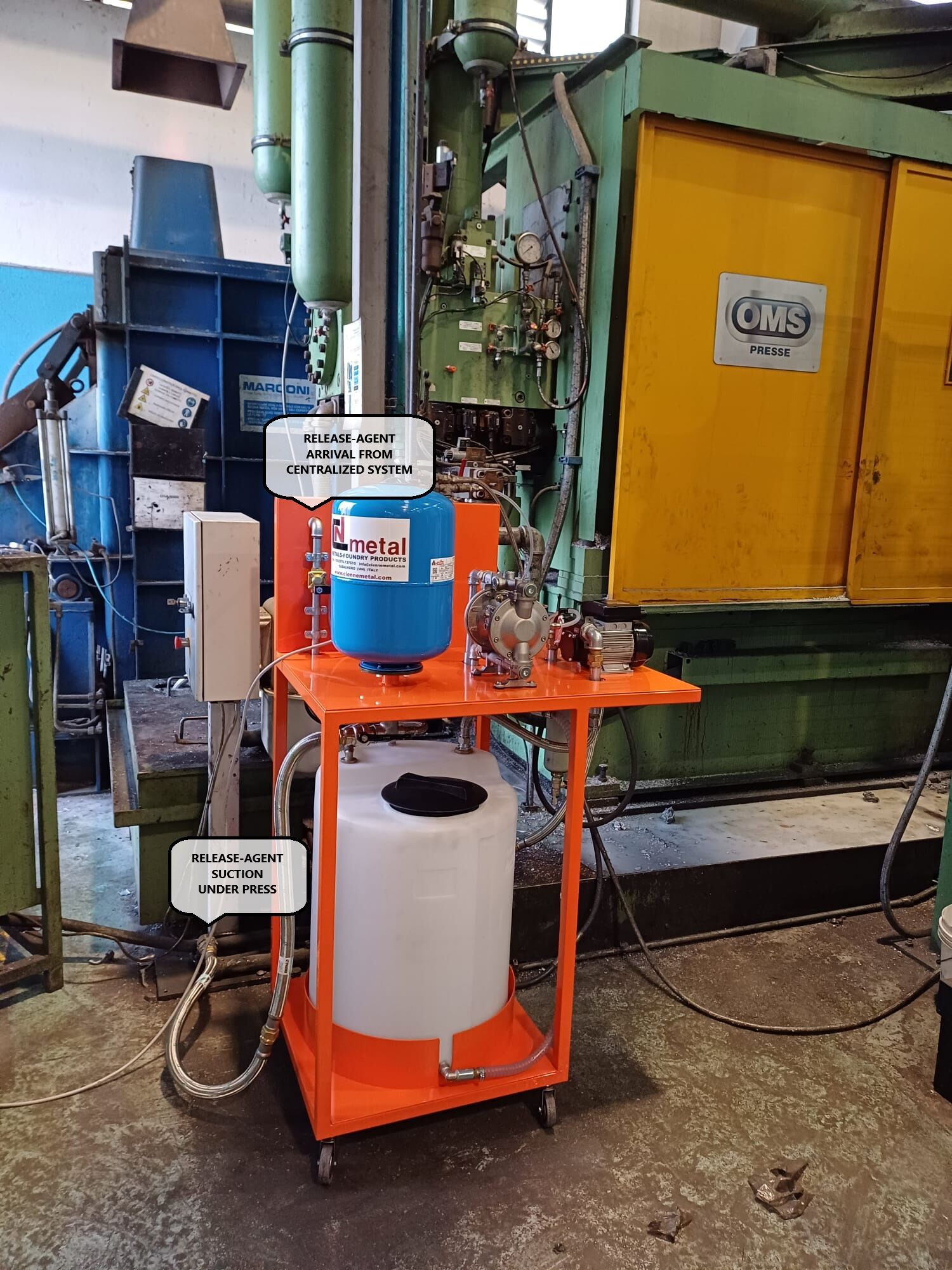

RELEASE-AGENT RECOVERY SYSTEM
THIS SYSTEM SUCKS THE EXHAUSTED RELEASE AGENTS UNDER THE PRESS, SENDS IT INTO THE POLYETHYLENE TANK WHERE IT IS MIXED WITH THE RELEASE AGENTS COMING FROM THE CENTRALIZED MIXING SYSTEM AND IT IS THEN SENT UNDER PRESSURE TO THE LUBRICATOR
THIS MEANS THAT THERE IS NO LONGER THE PROBLEM OF SENDING THE RESIDUE TO THE FILTRATION OR DISPOSAL PLANT !!
THE SYSTEM WORKS COMPLETELY AUTOMATIC THROUGH FLOATS AND SOLENOID VALVES
OPTIONAL: VERSION WITH BUILT-IN MIXER
TECHNICAL FEATURES:
POLYETHYLENE TANK 100 L
20 LT ACCUMULATOR OUTPUT MAX PRESSURE 8 BAR
PNEUMATIC PUMP AND SELF-PRIMING ELECTRIC PUMP 220 VOLT
WASHABLE METAL FILTER

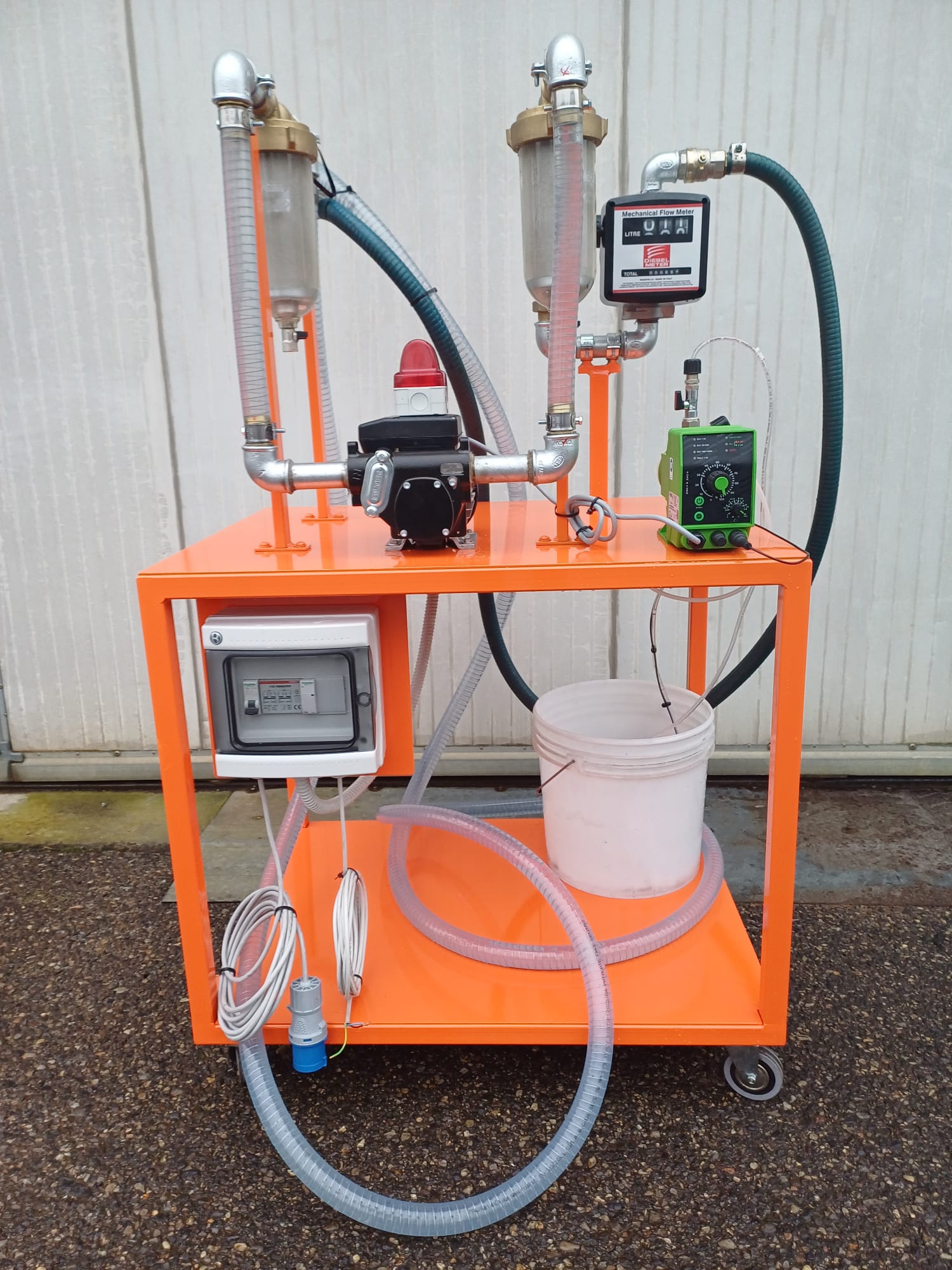

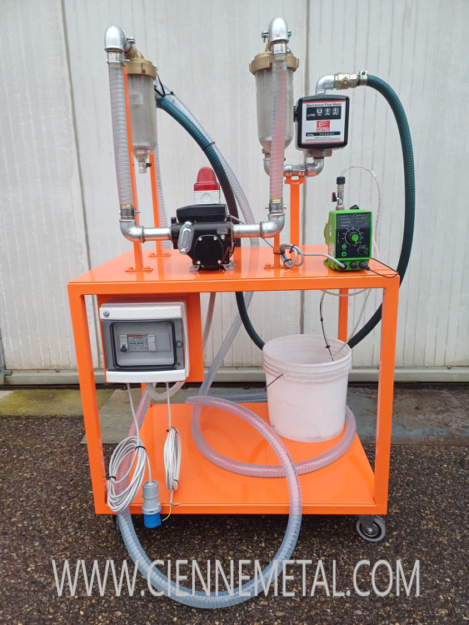

RECOVERY, FILTERING AND RELEASE AGENT RESTORATION SYSTEM
TO BE INSTALLED ON BOARD THE MACHINE
WITH A SELF-PRIMING SUCTION PUMP
THIS SYSTEM DRAWS THE RELEASE AGENT FROM THE TANK UNDER THE PRESS, FILTERED IT, THE PERCENTAGE OF RELEASE AGENT IS ADDED FOR USE AND IT IS PUT DIRECTLY BACK INTO THE LINE TOGETHER WITH THE FRESH PRODUCT WHICH WILL GO DIRECTLY TO THE LUBRICANT, IN THIS WAY THERE WILL BE A CLOSED LOOP USE WITHOUT DISPOSAL
IT IS RECOMMENDED TO INSTALL A BELT OIL SEPARATOR ON THE WELL TO REMOVE THE OIL ON THE SURFACE, THUS AVOIDING PREMATURE CLOGGING OF THE TWO FILTERS

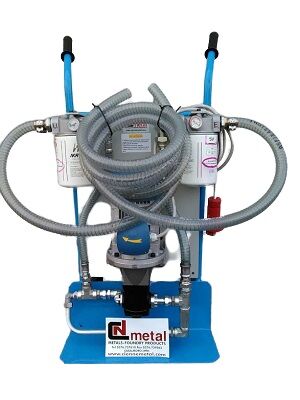

FILTERING SYSTEM FOR GLYCOL WATER
DOUBLE MAXI FILTERS
MOUNTED ON TROLLEY
